Tianjin DeINA Bearing Sales Co., Ltd.
|
Deep groove ball bearing
| Price: | 0.1~10.0 USD |
| Payment Terms: | T/T,L/C,WU |
| Place of Origin: | , China (Mainland) |
|
|
| Add to My Favorites | |
| HiSupplier Escrow |
Product Detail
Deep groove ball bearing
1.open & sealed design
2.shield/seals capping device
3.versatile type of ball bearings
Dimension:9*24*7mm

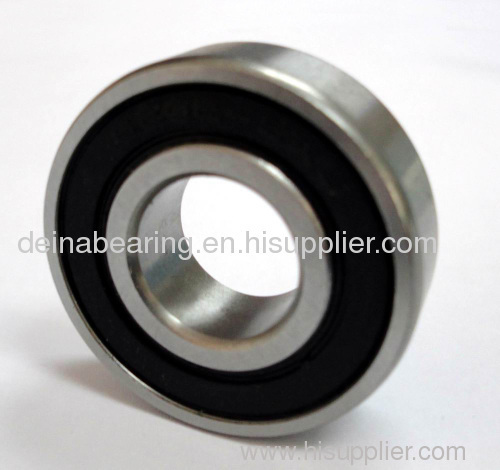

Deep groove ball bearing (609-2RSR,609-2RSH,609DDU)
Parameter:
Inner Diameter | 9mm |
Outer Diameter | 24mm |
Thickness | 7mm |
Description:
1. The deep groove ball bearings are available in many executtions and sizes. They are simple in design, non-separable, suitable for high speeds.
2. The deep raceway grooves and the close conformity between the raceway grooves and the balls enable deep groove ball bearing to accommodate axial loads in both directions., in addtion to radial loads, even at high speeds.
3. Different design: open basic design, the sealed design, the bearings with flange, the bearings with the snap and so on.
Common deep groove ball bearing models as follows:
| d | D | B | |
| mm | mm | mm | |
| 607-2RSR | 7 | 19 | 6 |
| 608-2RSR | 8 | 22 | 7 |
| 609-2RSR | 9 | 24 | 7 |
| 6000-2RSR | 10 | 26 | 8 |
| 6001-2RSR | 12 | 28 | 8 |
| 6002-2RSR | 15 | 32 | 9 |
| 6003-2RSR | 17 | 35 | 10 |
| 6004-2RSR | 20 | 42 | 12 |
| 6005-2RSR | 25 | 47 | 12 |
| 6006-2RSR | 30 | 55 | 13 |
| 6007-2RSR | 35 | 62 | 14 |
| 6008-2RSR | 40 | 68 | 15 |
| 6009-2RSR | 45 | 75 | 16 |
| 6010-2RSR | 50 | 80 | 16 |
| 6011-2RSR | 55 | 90 | 18 |
| 6012-2RSR | 60 | 95 | 18 |
| 6013-2RSR | 65 | 100 | 18 |
| 6014-2RSR | 70 | 110 | 20 |
| 6015-2RSR | 75 | 115 | 20 |
| 6017-2RSR | 85 | 130 | 22 |
| 6018-2RSR | 90 | 140 | 24 |
| 6019-2RSR | 95 | 145 | 24 |
| 6020-2RSR | 100 | 150 | 24 |
| 6022-2RSR | 110 | 170 | 28 |
| 6024-2RSR | 120 | 180 | 28 |
| 6026-2RSR | 130 | 200 | 33 |
| 6032-2RSR | 160 | 240 | 38 |
